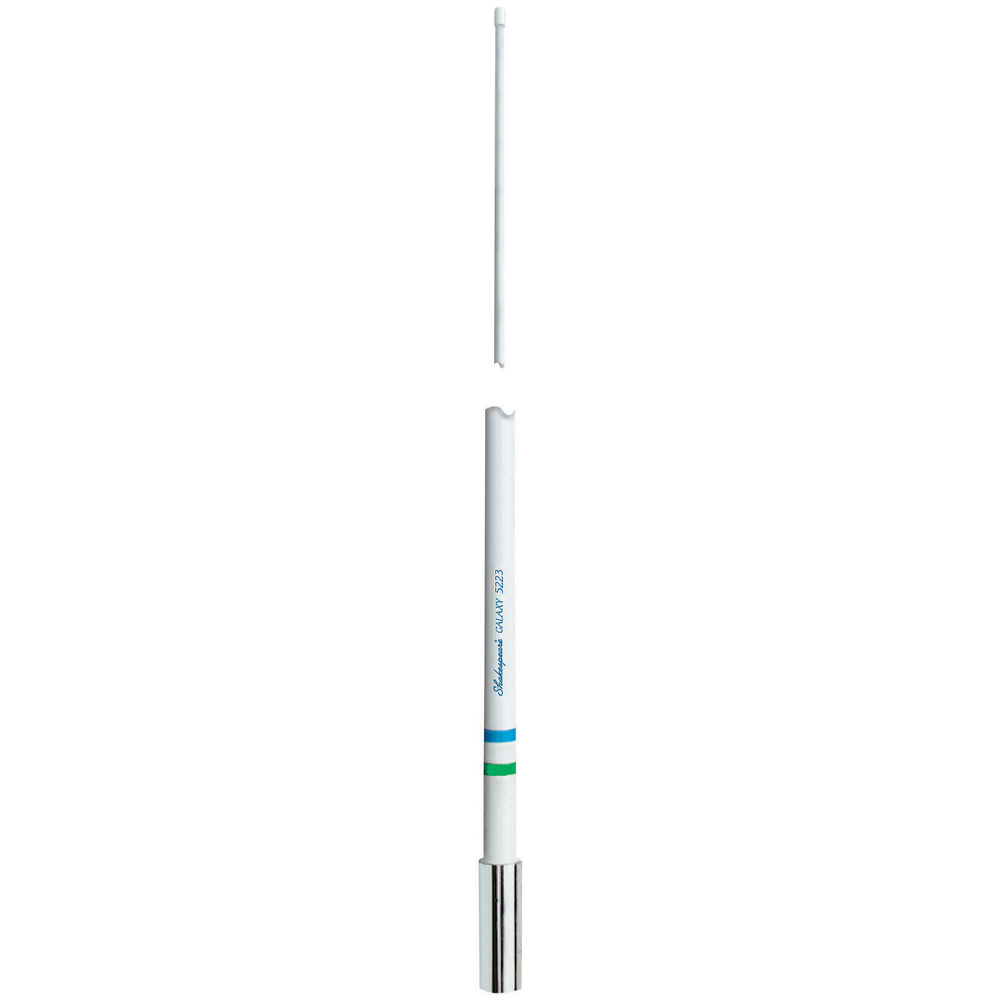

Shakespeare Galaxy 5223-XT CB - Reduced Length Version
8' CB Unity Gain
Continuous-load, end-fed 1/2 wave
A tuneable, easily installed CB antenna for top performance in demanding situations. Connector is suppled but not installed, so only a 3/8" hole is required for passage of the cable. Coax length can be altered on this antenna.
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20' RG-8/X cable, which can be cut to size, and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a 410-R Mounting Kit and a Shakespeare Style 5228 Extension Mast to form a 16' antenna system
- One section
- Twin to: Galaxy Style 5225-XT VHF
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
| Frequency: | 27 MHz Citizens Band |
| Bandwidth: | 440 Khz within 22.0:1 VSWR |
| SWR: | 1.5:1 or less at Channel 19 |
| Impedance: | 50 ohms |
| Max Input (Watts): | 25 Watts |
| DC Ground: | YES |
| Height (feet): | 8' |
| Polarization: | Vertical |
